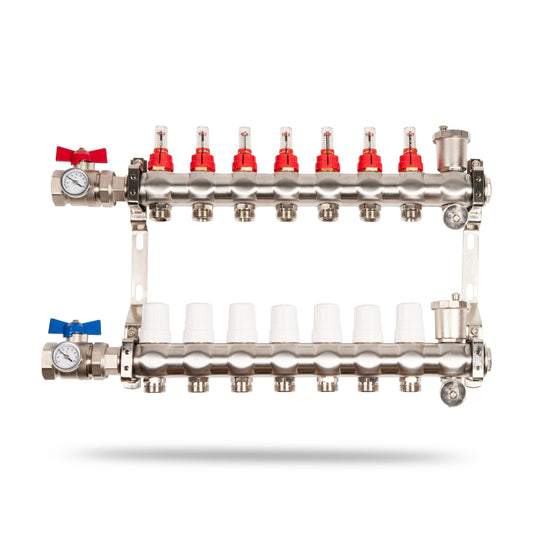

Stainless steel heating circuit distributor - 4 heating circuits

Stainless steel heating circuit distributor - 4 heating circuits

Regular price €14,00 EUR
Regular price Sale price €14,00 EUR
Sale Sold out
Taxes included.

In stock

For order quantities over 5 pieces please send inquiry

Technical data

  • Connection internal thread: 1 inch, both sides
  • Pipe connection: 3/4 inch
  • Material: 304 Stainless Steel
  • Form: Bamboo Shaped
  • Operating temperature: 0-95°C
  • Max. operating pressure: 5 bar (tested up to 10 bar)
  • Dimensions (length x height) including ball valve: 280 mm x 340 mm
  • Weight: 3 Kg
  • Flow indicator: 0.5-5 L/min
  • Vent: Integrated % automated
  • Mount: Noise-dampened

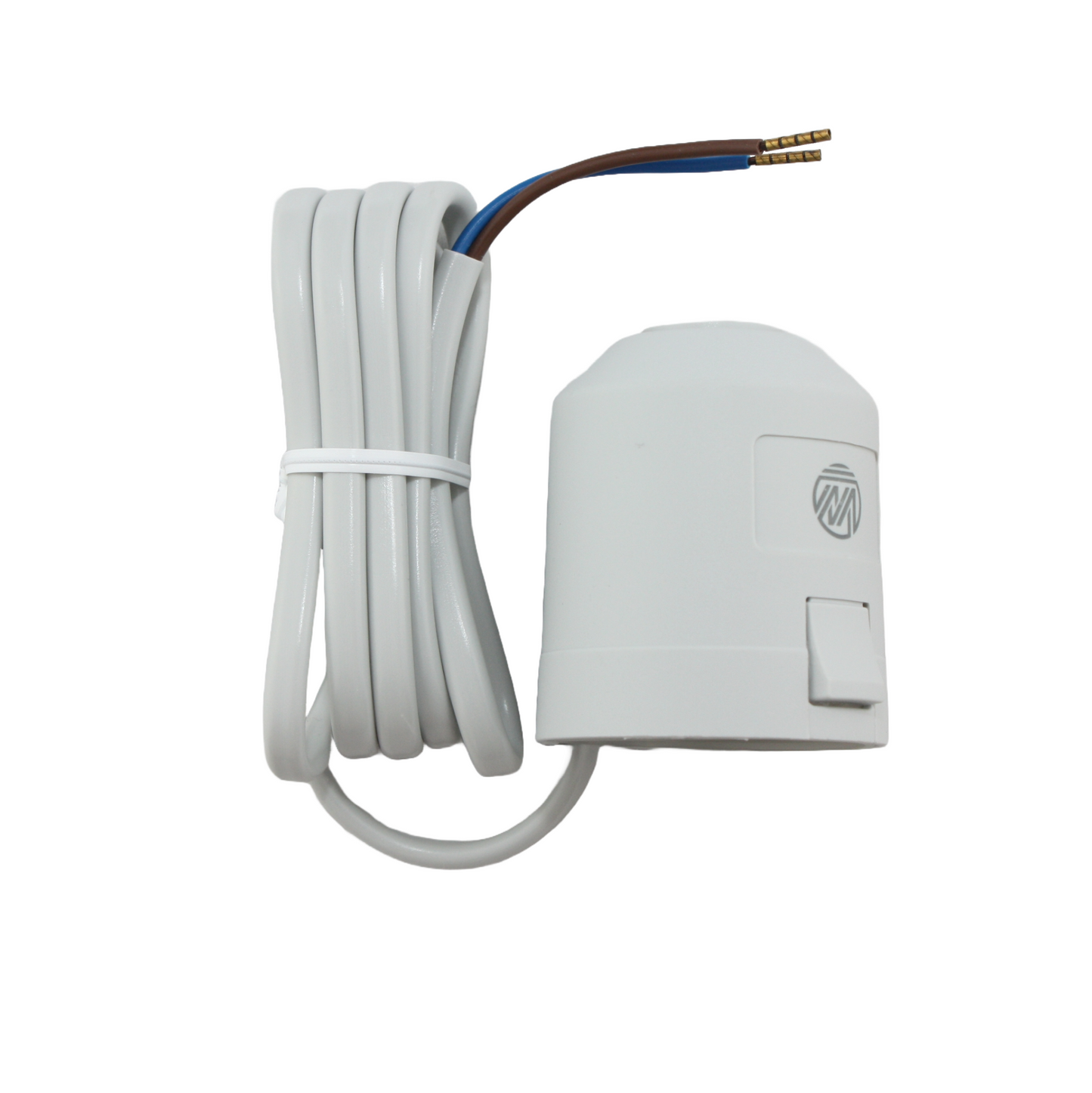

Article details (actuator)

  • Version: Normally closed, NC
  • Operating voltage: 230V AC 50/60 Hz
  • Operating power: 2 W
  • Inrush current: max. 300 mA
  • Protection class: Class II
  • Protection level: IP54
  • Storage temperature: -25°C to 65°C
  • Ambient temperature: 0°C to 60°C
  • Connection thread: M30 x 1.5
  • Connection adapter: VA 10
  • Manufacturer: Möhlenhoff
  • Installation: Simple plug-in installation
  • Fully compatible with our heating circuit distributors
  • Instructions included in delivery

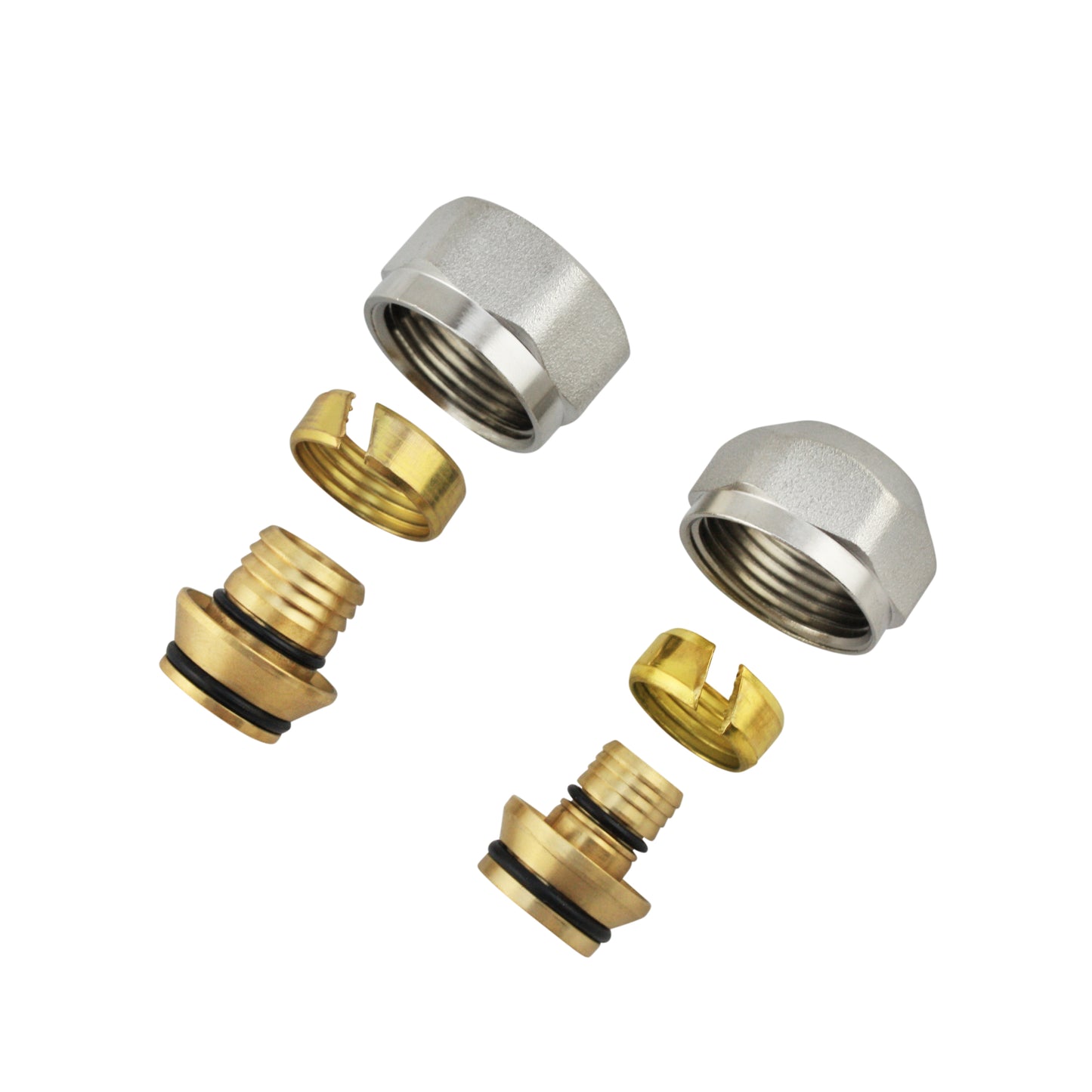

Article details (compression fittings)

  • Made of nickel-plated brass, brushed for plastic pipes
  • Set consists of:
    • 1x grommet with O-ring seal
    • 1x brass clamp ring
    • 1x union nut 3/4
  • Available in sizes:
    • 16 x 2.0 mm
    • 20 x 2.0mm
  • For multilayer plastic pipe/composite pipe
  • Fits 3/4" Eurocone
  • Max. operating temperature: 120°C
  • Fully compatible with our heating circuit distributors

scope of delivery

  • 2x distributor bars (flow indicator mounted)
  • 2x distributor holder (soundproofed)
  • 2x thermometer (in degrees Celsius)
  • 2x ball valve 1"
  • 2x Automatic vent
  • (Optional) 2x compression fittings per heating circuit
  • (Optional) 1x actuator per heating circuit
  • Screws included!
  • Reliable
  • User-friendly
  • High quality

Shipping Information

shipping costs

Shipping is free for orders within Germany. For deliveries to other European countries, the shipping fee is €13.99.

Delivery time

The usual shipping time is 2-4 working days. We will endeavour to dispatch your order as quickly as possible.

Shipping service providers

Delivery is via DHL as standard. We can also use another shipping service provider if requested.

Shipment tracking

After confirming your order, you will receive an email with shipping information.

Express shipping

We offer express shipping for an additional charge of €16.99. To use this option, please indicate in the shopping cart in the "Special Order Instructions" field that you require express shipping. We will then arrange for your order to be shipped as quickly as possible.

Return Information

If you would like to return your order, please contact us using the contact form. All further information will be sent to you.

Billing information

If you require a VAT invoice, please send us a request via our contact form or by email to info@alex-depot.de . Alternatively, you can also indicate this in the shopping cart under "Special Order Instructions" and we will provide you with the invoice immediately.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • sendungsverfolgung-alex-depot

    Shipment tracking

    After your order has been dispatched, we will keep you informed about the delivery status. Shipping within Germany is free!

  • sorglose-ruecknahme

    Carefree return

    You have 30 days to complete your return easily and stress-free – without any hassle!

  • 3-jahre-garantie-alex-depot

    3 year guarantee

    If you encounter any problems with your product, please do not hesitate to contact us using the contact form!

  • Professional advice

    We will be happy to advise you when purchasing so that you can find the right product for your needs.

alex-depot-heizkreisverteiler-lieferumfang

High-quality, efficient, durable

Heating circuit distributor

The heating circuit manifold plays a crucial role in modern surface heating systems, as it enables efficient and even heat distribution in your building. It ensures precise control and regulation of the individual heating circuits, which increases the comfort and energy efficiency of your heating system. The heating circuit manifold is ideal for underfloor heating, wall heating and other surface heating systems and is used in new buildings as well as renovation projects. It can be used in residential buildings, office buildings and commercial properties.

heizkreisverteiler-automatischer-entluefter

Reliable, Simple, Secure

Automatic vent

The automatic air vents integrated into our heating circuit manifolds remove the air accumulated in the water circuit without requiring manual intervention. This prevents the following negative phenomena that could affect the lifespan and efficiency of the heating system:
• Oxygen-induced corrosion
• Air accumulation in the radiator
• Cavitation in the circulation pump
• Dry running of the pump

Klemmringverschraubung-alex-depot

Robust, connection security, simple

Compression fitting

Compression fittings are essential connecting elements for heating circuit manifolds. They enable the pipes to be installed securely and tightly without the need for welding or soldering. Their ease of use means they offer quick and reliable installation, ensuring stable connections and optimal heat distribution in the heating system.

Stellantrieb-Moehlenhoff

Economical, Powerful, Versatile

Actuator - designed by Möhlenhoff

Möhlenhoff actuators enjoy an excellent reputation worldwide thanks to their well-thought-out functionality, high reliability and high-quality design. They are characterized by the lowest energy consumption in their class and are produced in a resource-saving manner. The simple plug-in assembly enables tool-free installation of the valve adapter, so that the actuator can be plugged in effortlessly. With this system, the actuators are compatible with 99 percent of all valves, ideal for retrofitting or replacement. Möhlenhoff guarantees maximum protection against common overvoltages in the power grid and, thanks to a patented sealing process, ensures water protection (IP54) in all installation positions.

  • Vorteile der Kupferlötung

    Advantages of copper soldering

    Learn why copper increases the energy efficiency of plate heat exchangers and how it contributes to cost savings and a longer service life.

    Advantages of copper soldering

    Learn why copper increases the energy efficiency of plate heat exchangers and how it contributes to cost savings and a longer service life.

  • Funktionsweise - Plattenwärmetauscher

    How it works - plate heat exchanger

    The secret of efficient heat transfer lies in the use of the countercurrent principle. Find out why copper brazed plate heat exchangers are so effective!

    How it works - plate heat exchanger

    The secret of efficient heat transfer lies in the use of the countercurrent principle. Find out why copper brazed plate heat exchangers are so effective!

  • Vorteile einer Isolierung

    Benefits of Insulation

    PUR rigid foam insulation optimizes the efficiency of your plate heat exchanger and minimizes energy loss. Find out more about the advantages in the article.

    Benefits of Insulation

    PUR rigid foam insulation optimizes the efficiency of your plate heat exchanger and minimizes energy loss. Find out more about the advantages in the article.

  • Aufbau - Plattenwärmetauscher

    Structure - Plate heat exchanger

    Discover how copper-brazed plate heat exchangers enable efficient heat transfer thanks to their special design and are convincing in many applications.

    Structure - Plate heat exchanger

    Discover how copper-brazed plate heat exchangers enable efficient heat transfer thanks to their special design and are convincing in many applications.

1 of 4

Frequently Asked Questions

How do I receive an invoice for my order?

If you require an invoice with VAT shown, please send us a request via our contact form or by email to info@alex-depot.de . We will then provide you with the invoice immediately.

How do I claim my warranty and return?

Our products come with a 3-year warranty that covers defects in materials and workmanship. If any defects occur within the warranty period, please contact us to discuss the process for a return or exchange.

You have 30 days from receipt of your order to make a return. Please contact us to obtain a return authorization and clarify the next steps. Make sure that the products are in their original packaging.

When will unavailable products be available again?

If a product is currently unavailable, we will do our best to get it back in stock as soon as possible. Please let us know if you are missing a specific product and we will see if we can get it for you ahead of schedule.

Is it possible to receive my order via express shipping?

Yes, we offer express shipping for an additional charge of €16.99. To use this option, please indicate that you require express shipping in the "Special Order Instructions" field in your shopping cart. We will then arrange for your order to be shipped as quickly as possible.

Do you offer customized plate heat exchangers?

Yes, we offer customized plate heat exchangers designed to meet our customers' specific requirements. If you require customized solutions, please contact us with your requirements and we will be happy to help you find the right heat exchanger for your application.

How do you calculate the average temperature difference?

The mean temperature difference of a plate heat exchanger can be calculated by several methods, depending on the type of heat exchanger and the specific conditions. A common method is the Logarithmic Mean Temperature Difference. Here is how you can calculate it:

Formula for the logarithmic mean temperature difference

LMTD = (ΔT1 - ΔT2) / ln(ΔT1 / ΔT2)

variables

  • LMTD: logarithmic mean temperature difference
  • ΔT1: Temperature difference at one end of the heat exchanger
  • ΔT2: Temperature difference at the other end of the heat exchanger

Example

  • Temperature of the hot liquid at the inlet (Th): 150 °C
  • Temperature of the cold liquid at the inlet (Tc): 30 °C
  • Temperature of the hot liquid at the outlet (Th'): 80 °C
  • Temperature of the cold liquid at the outlet (Tc'): 60 °C
1. Calculation of ΔT1 & ΔT2

ΔT1 = Th - Tc = 150 °C - 30 °C = 120 °C

ΔT2 = Th' - Tc' = 80 °C - 60 °C = 20 °C

2. Calculation of the mean temperature difference

LMTD = (120°C - 20°C) / ln(120°C / 20°C)
LMTD ≈ 55.8 °C

How is the heat flow calculated?

Q = U * A * LMTD

  • Q: heat flow (W)
  • U: total heat transfer coefficient (W/m²·K)
  • A: Heat transfer area (m²)
  • LMTD: logarithmic mean temperature difference (K)

or

Q = ṁ * cp * LMTD

  • Q: heat flow (W)
  • ṁ: mass flow rate (kg/s)
  • cp: specific heat capacity (J/kg·K)
  • LMTD: logarithmic mean temperature difference (K)

How should I connect my heat exchanger?

cocurrent and countercurrent principle

The heat energy that can be transferred in a plate heat exchanger is not only determined by the size of the exchange surface and the heat transfer coefficient (k), but is also significantly influenced by the flow directions of the media involved. If both media flow in the plate heat exchanger in the same direction, this is referred to as the cocurrent principle. If they flow in opposite directions, however, this is the countercurrent principle.

The flow direction has a significant influence on the average temperature difference between the media, which in turn determines the efficiency of heat transfer.

Temperature curve with the direct current principle | Temperature curve with the countercurrent principle

Theoretical consideration of the connection options of a plate heat exchanger:

In this example we assume two media with the same heat capacity and the same mass flow.

  • Medium 1: 80 °C
  • Medium 2: 20 °C

With the cocurrent principle, the maximum temperature that can be reached for both media would be 50 °C, which corresponds to the mixing temperature. With the countercurrent principle, however, medium 2 could reach a temperature of up to 80 °C, while medium 1 can be cooled to 20 °C.

This means that the countercurrent principle allows a larger amount of heat to be transferred using the same exchange surface area.

How do I find the right plate heat exchanger for my application?

Finding the right plate heat exchanger doesn't have to be complicated. If you have any questions or need support, don't hesitate to contact us. We'll be happy to help you choose the right model for your needs.
